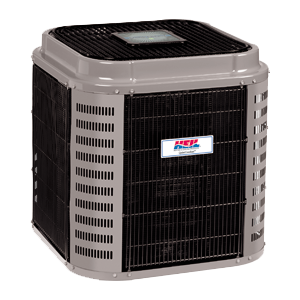

HCH9 19 SEER Communicating Split Heat Pump

Heil QuietComfort DXT+ Two-Stage Heat Pumps featuring Observer communicating system are designed to take you home to a new level of comfort and efficiency. Teamed with our Observer communicating wall control and A Heil communicating fan coil or gas furnace, the QuietComfort DVT+ functions as a part of a complete communicating home comfort system. Various components of the system talk to each other electronically, fine-tuning comfort levels while maximizing energy savings.

  • Copeland Scroll UltraTech compressors on all models
  • Crankcase heater factory installed
  • Suction line accumulator factory installed
  • Bi-flow filter-drier supplied with every unit for field installation
  • Integrated solid state control with Time-Temperature Defrost
  • High and low pressure switches
  • Discharge gas thermostat
  • Communicating, self-configuring operation when used with Observer Wall Control (TSTAT0101SC)
  • Outdoor temperature sensor factory installed
  • Ball bearing ECM fan motors on all models
  • High performance compressor sound shield standard
  • Text based diagnostics with Observer communicating wall control
  • Factory charged with R-410A refrigerant
  • High gloss, baked-on powder coat finish over galvanized steel
MODELCooling Cap. MBtuHSEERHeating Cap.MBtuHHSPFRefrigerant Charge Oz.Line SizeDimensions HxWxDWeight Lbs.
HCH924GKA24.8 18.0 25.0 10.0 218 3/8-3/4 40.1x35x35 266
HCH936GKA 36.6 19.0 37.4 10.0 224 3/8-7/8 43.5x35x35 283
HCH948GKA47.0 17.0 47.5 9.5 231 3/8-1-1/8 46.7x35x35 319
HCH960GKA56.0 16.0 58.5 9.5 235 3/8-1-1/8 46.9x35x35 320

Warranty Information

  • for 120 months - No Hassle Unit Replacement
  • All Parts for 120 months -

Available Documents
