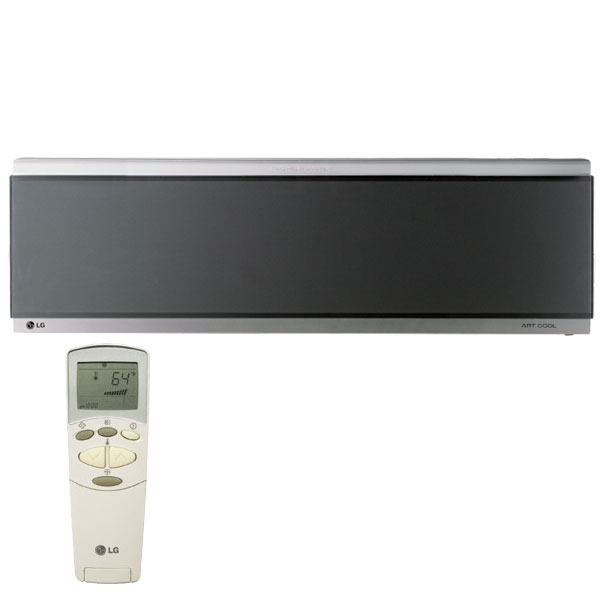

The slim, contemporary styling of the Art Cool models will appeal to today's discerning customer. Art Cool indoor units are available in popular finishes and colors to compliment any decor.

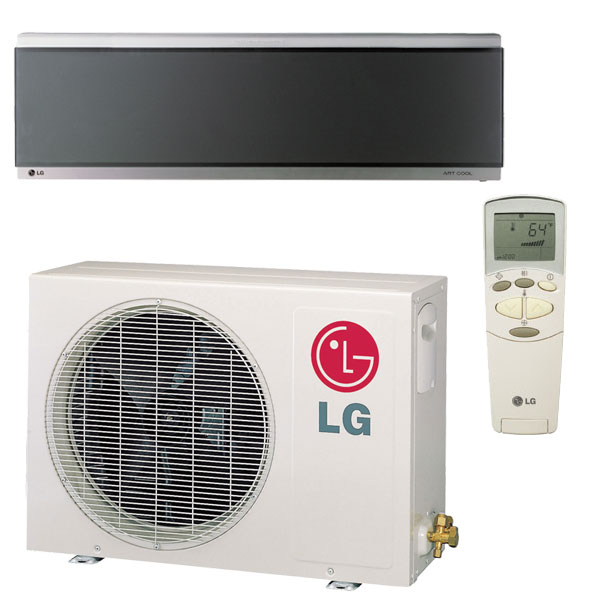

LG Mini-Split Heat Pumps - Click to View
| Model ID | Model Name | Indoor Unit Model | Outdoor Unit Model | Cooling Cap. MBH | Heating Cap. MBH | SEER | Indoor CFM | Volts | Amps |
|---|---|---|---|---|---|---|---|---|---|
| 28736 | LA095HV | LAN095HV | LAU095HV | 9.2 | 12.0 | 19.7 | 230/180/140 | 230 | 6.0 |
| 28737 | LA125HV | LAN125HV | LAU125HV | 12.0 | 15.5 | 18.7 | 260/180/140 | 230 | 6.0 |
| 28738 | LA185HV | LAN185HV | LAU185HV | 18.0 | 20.7 | 16.2 | 460/380/320 | 230 | 7.3 |
| 28739 | LA245HV | LAN245HV | LAU245HV | 24.0 | 27.6 | 16.2 | 530/445/378 | 230 | 11.0 |
| Model ID | Model Name | Indoor HxWxD | Indoor Weight | Indoor dB | Outdoor HxWxD | Outdoor Weight | Line Set Size | Max Lineset Lnth - Hgt |
|---|---|---|---|---|---|---|---|---|
| 28736 | LA095HV | 11.1x25.2x6.5 | 23 | 38/35/32 | 21.3x30.3x9.6 | 84 | 1/4 - 3/8 | 50 - 25 |
| 28737 | LA125HV | 11.1x35.2x6.5 | 23 | 41/35/32 | 21.3x30.3x9.6 | 84 | 1/4 - 3/8 | 50 - 25 |
| 28738 | LA185HV | 11.75x43.7x7.9 | 31 | 42/39/36 | 25.8x34.3x12.6 | 101 | 1/4 - 1/2 | 50 - 25 |
| 28739 | LA245HV | 11.75x43.7x7.9 | 31 | 47/42/39 | 25.8x34.3x12.6 | 172 | 3/8 - 5/8 | 100 - 50 |
