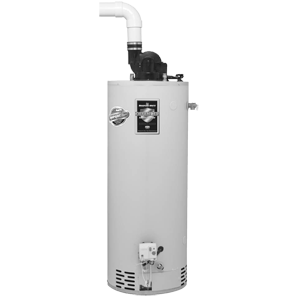

Bradford White Defender Ultra Low NOx Gas Water Heaters
- Powerful Blower Motor - Our design has higher torque for greater resistance to
outside winds and the power to eliminate problems with difficult venting situations.
This significantly quieter motor runs cooler for a considerably longer operational life.
- Advanced ScreenLok Technology Flame Arrestor Design
- Electronic Gas Control Valve
- Spark to Pilot Ignition System
- Horizontal and Vertical Venting - With 3" or 4" PVC, ABS or CPVC
- Burner View Window
- Factory Installed Hydrojet 2 Total Performance System - Cold water inlet sediment reducing device helps prevent sediment build up in tank and increases first hour delivery of hot water.
- Vitraglas Lining - exclusive ceramic porcelain
- Self Diagnostic Honeywell Gas Control
- 2" Non-CFC Foam Insulation
- Factory Installed Heat Traps Design incorporates a flexible disk that
reduces heat loss in piping and eliminates the potential for noise generation
- Protective Magnesium Anode Rod
- 3x4 Snap Lock Draft Diverter
- T&P Relief Valve
- Brass Drain Valve
- Meets SCAQMD Rule 1121 (10ng/J NOx limit)
| Model ID | Model Name | Gallon
Size | Input
MBtuH NG | Recover 90d
Rise NG | 1st Hour
Rating Gal | Energy
Factor | Energy
Star | Volts - Amps | Hgt To Vent
x Dia | Wgt |
|---|
| 474 | M-2-TW-50T6FBN | 48 | 67.0 | 72 | 108 | .66 | Yes | 110 - 3.1 | 65.9x22 | 188 |
| 475 | M-2-TW-65T6FBN | 65 | 70.0 | 75 | 128 | .66 | Yes | 110 - 3.1 | 69x24 | 222 |
| 476 | M-2-TW-75T6BN | 75 | 76.0 | 82 | na | na | Mo | 110 - 3.1 | 69.75x26 | 277 |
