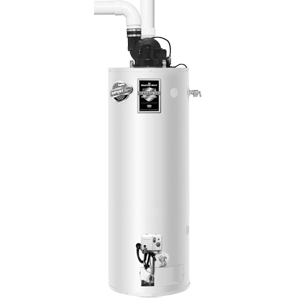

PDX2 Power Direct Vent Energy Saver Gas Water Heater
- Closed Combustion Venting System - Power Direct Vent closed combustion system utilizes external air for combustion and exhausts directly to the outside through a separate two-pipe system. The air intake and exhaust vent are 3" connections. The equivalent feet of intake venting cannot be greater than the equivalent feet of exhaust venting.
- Powerful Blower Motor - Design has higher torque for greater resistance to outside winds and the power to eliminate problems with difficult venting situations. This significantly quieter motor runs cooler for a considerably longer operational life.
- Advanced ScreenLok Technology Flame Arrestor Design
- Electronic Gas Control Valve
- Spark to Pilot Ignition System
- Horizontal and Vertical Venting - With 3" or 4" PVC, ABS or CPVC
- Burner View Window
- Factory Installed Hydrojet 2 Total Performance System - Cold water inlet sediment reducing device helps prevent sediment build up in tank and increases first hour delivery of hot water.
- Vitraglas Lining - exclusive ceramic porcelain
- Self Diagnostic Honeywell Gas Control
- 2" Non-CFC Foam Insulation
- Factory Installed Heat Traps Design incorporates a flexible disk that
reduces heat loss in piping and eliminates the potential for noise generation
- Protective Magnesium Anode Rod
- 3x4 Snap Lock Draft Diverter
- T&P Relief Valve
- Brass Drain Valve
- Meets SCAQMD Rule 1121 (10ng/J NOx limit)
| Model ID | Model Name | Gallon
Size | Input
MBtuH NG | Recovery 90d
MBtuH NG | 1st Hour
Rating Gal | Energy
Factor | Energy
Star | Volts - Amps | Hgt to Vent
x Dia | Wgt |
|---|
| 479 | PDX2-50T6FBN | 48 | 60.0 | 65 | 105 | .62 | Yes | 110 - 3.1 | 68x22 | 303 |
| 480 | PDX2-65T6FBN | 65 | 65.0 | 70 | 120 | .60 | No | 110 - 3.1 | 71.25x22 | 330 |
| 481 | PDX2-75T6FBN | 75 | 70.0 | 75 | 140 | .59 | No | 110 - 3.1 | 71x26 | 375 |
