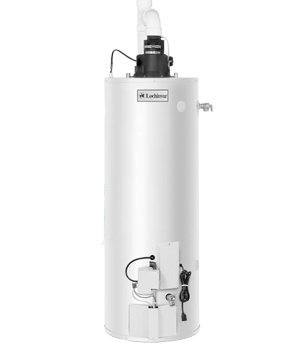

Lochinvar Direct Vent Gas Water Heater
Direct Vented models are available in capacities of 48, 65 & 75 gallons and feature a powered exhaust fan for sidewall venting with PVC material. All models meet or exceed the NAECAand ASHRAE Energy Efficiency Standards.
- Shield Combustion System
- Power Direct Venting System - This 2-pipe closed combustion system utilizes a stand alone vent to exhaust the byproducts of combustion, and a separate air intake to provide fresh combustion air to the unit.
- Side Wall or Vertical Venting
- Electronic Spark Ignition
- Heat Trap Nipples
- Low NOx Burner
- Non-CFC Foam Insulation
- Heat Traps - Factory installed, minimizes heat loss through piping
- Dielectric Nipples -Factory installed waterways protect the tank from corrosive action between dissimilar metals, while providing piping convenience.
- Glass-Lined Tank with Magnesium Anode Rod
- Durable Brass Drain Valve
- Temperature & Pressure (T&P) Relief Valve
- Vent Specs
- 3" - 40 equivalent feet
- 4" - 75 equivalent feet
| Model ID | Model Name | Gallon
Capacity | Input
MBtuH | 1st Hour
Rating | GPH @
90dRise | Tank
Hgt x Dia | Total
Height | Insulation
Thickness | Weight |
|---|
| 2383 | PRN050G | 48 | 60.0 | 100 | 65 | 58.75x22 | 68.5 | 1 | 196 |
| 2384 | PRN065G | 65 | 65.0 | 114 | 70 | 62x24 | 71.5 | 1 | 230 |
| 2385 | PRN075G | 75 | 75.0 | 132 | 75 | 59x26 | 69.5 | 1 | 262 |
All models available with a Six Year Limited Warranty Against Tank Failure. All parts are warranted for six years.Three year limited warranty on all models when installed in a commercial application. (A Ten Year Limited Warranty upgrade is available.)
