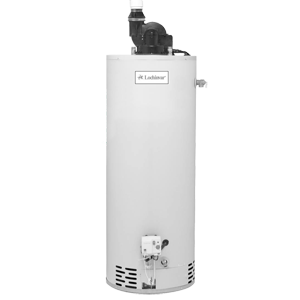

Lochinvar Residential Gas Water Heater

Power Vented models are available in capacities of 40, 50, 65 & 75 gallons and feature a powered exhaust fan for sidewall venting with PVC material. All models meet or exceed the NAECAand ASHRAE Energy Efficiency Standards.

Shield Combustion System
PowerVented Exhaust System - The 120 VAC blower fan exhausts the by-products of combustion directly to the outside the building through PVC style pipe
Side Wall orVertical Venting
Electronic Spark Ignition
Heat Trap Nipples
Low NOx Burner
Non-CFC Foam Insulation
Glass-Lined Tank with Magnesium Anode Rod
Durable Brass Drain Valve
Temperature & Pressure (T&P) Relief Valve

Model ID	Model Name	Gallon Capacity	Input MBtuH	1st Hour Rating	GPH @ 90d Rise	Energy Factor	Insulation Thickness	Tank Hgt x Dia.	Total Height	Weight
2378	LVN041G	40	40.0	69	43	0.62	1	46.5x20	56.5	135
2379	LVN051G	50	40.0	80	43	0.62	1	47.25x22	57.5	160
2380	LVN052G	48	67.0	102	72	0.65	2	56.5x22	66	190
2381	LVN065G	65	70.0	118	75	0.65	2	59.5x24	69	225
2382	LVN076	75	76.0	na	82	na	1	59x26	68.5	246

Model ID	Model Name	Total Vent Ft. 2 in. PVC	Total Vent Ft. 3 in. PVC	Total Vent Ft. 4 in. PVC
2378	LVN041G	50	120
2379	LVN051G	50	120
2380	LVN052G		60	180
2381	LVN065G		60	180
2382	LVN076		50	80

All models available with a Six Year Limited Warranty Against Tank Failure. All parts are warranted for six years.Three year limited warranty on all models when installed in a commercial application. (A Ten Year Limited Warranty upgrade is available.)
