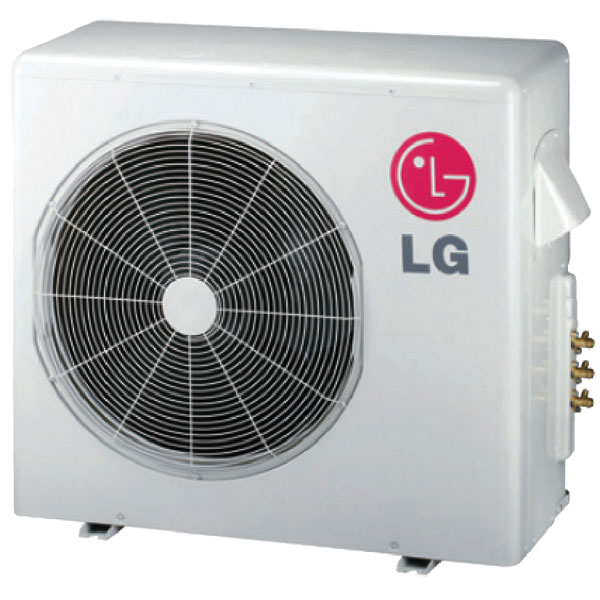

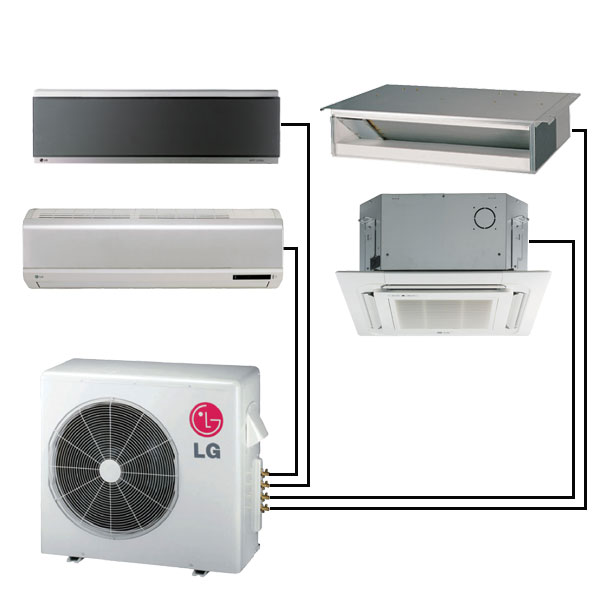

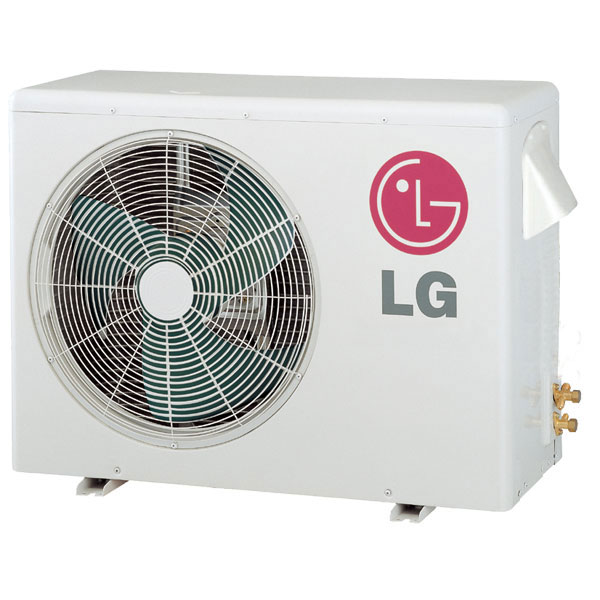

The larger, Flex Multi-Split systems operate two, three or four interior units that are mounted in separate rooms. Each indoor unit comes with its own remote control, allowing the customer to set the temperature individually in different rooms. These units are connected to a single exterior unit.

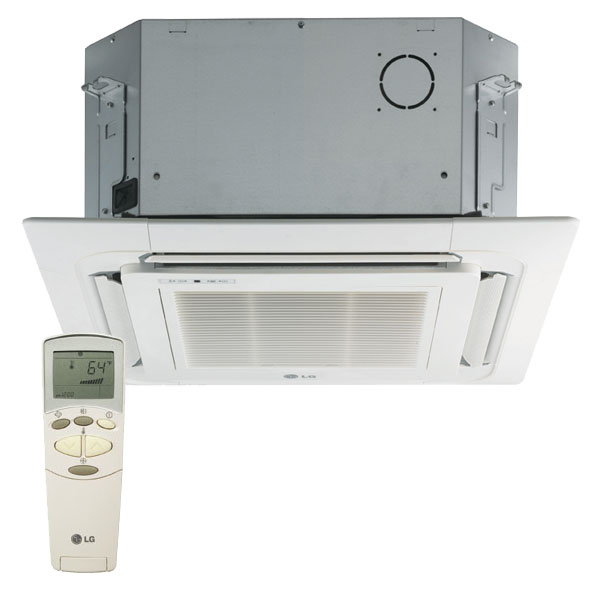

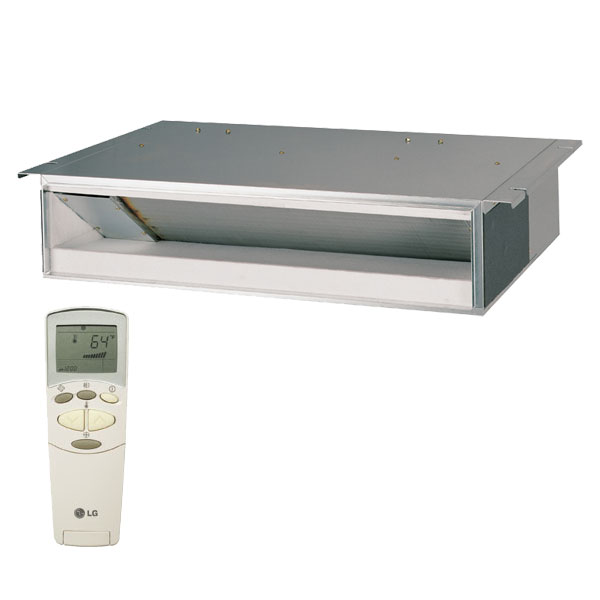

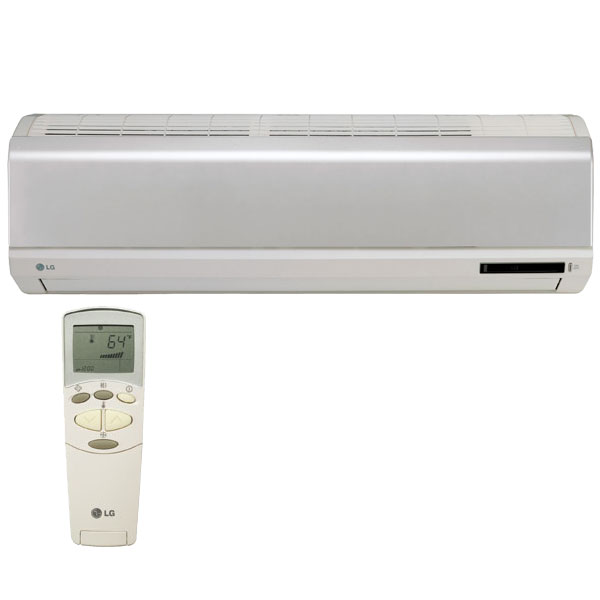

The interior units are available in a variety of styles, including Art Cool, Standard, Ceiling Cassette, and Ceiling Concealed Duct models. Dual,Tri and Quad-Zone are available in Heat Pump systems.
LG Mini-Split Heat Pumps - Click to View
| Model ID | Model Name | Type | Clg Cap. MBH | Htg Cap. MBH | SEER | HSPF | Oper Temp Range | dB Range |
|---|---|---|---|---|---|---|---|---|
| 28740 | LMU185HV | 2 Zone Outdoor | 18.0 | 18.0 | 5 - 115 | 51 - 45 | ||
| 28741 | LMU245HV | 3 Zone Outdoor | 24.0 | 24.0 | 5 - 115 | 52 | ||
| 28742 | LMU365HV | 4 Zone Outdoor | 36.0 | 36.0 | 5 - 115 | 52 | ||
| 28743 | LMN095HV | Standard Wall | 9.9 | 10.8 | 15.0 | 8.7 | 31 - 22 | |
| 28744 | LMN125HV | Standard Wall | 13.2 | 14.5 | 15.0 | 8.5 | 35 - 24 | |
| 28745 | LMN185HV | Standard Wall | 19.8 | 21.8 | 17.9 | 8.7 | 37 - 31 | |
| 28746 | LMAN095HV | Art Cool | 9.9 | 10.8 | 15.0 | 8.7 | 31 - 22 | |
| 28747 | LMAN125HV | Art Cool | 13.2 | 14.5 | 15.0 | 8.5 | 35 - 24 | |
| 28748 | LMAN185HV | Art Cool | 19.8 | 21.8 | 17.9 | 8.7 | 37 - 31 | |
| 28749 | LMDN095HV | Ducted | 9.9 | 10.9 | 15.4 | 8.5 | 32 - 25 | |
| 28750 | LMDN125HV | Ducted | 13.2 | 14.5 | 17.5 | 8.5 | 33 - 26 | |
| 28751 | LMDN185HV | Ducted | 19.8 | 22.8 | 17.9 | 8.7 | 34 - 29 | |
| 28752 | LMCN125HV | Cassette | 13.2 | 14.5 | 15.0 | 8.5 | 38 - 32 | |
| 28753 | LMCN185HV | Cassette | 19.8 | 21.8 | 17.9 | 8.7 | 38 - 34 |
| Model ID | Model Name | HxWxD | Weight | Ref. Conn. | Line Max Lnth - Lift | CFM | Volts | Amps |
|---|---|---|---|---|---|---|---|---|
| 28740 | LMU185HV | 25.8x34.3x12.6 | 115 | 1/2 - 3/8 (2) | 164 - 49 | 230 | 9.6 | |
| 28741 | LMU245HV | 31.8x34.3x12.6 | 144 | 1/2 - 3/8 (3) | 246 - 49 | 230 | 15.5 | |
| 28742 | LMU365HV | 31.8x34.3x12.6 | 144 | 1/2 - 3/8 (4) | 246 - 49 | 230 | 18.5 | |
| 28743 | LMN095HV | 11.2x35.25x6.5 | 21 | 1/4 - 3/8 | 282 - 177 | 230 | 0.15 | |
| 28744 | LMN125HV | 11.2x35.25x6.5 | 21 | 1/4 - 3/8 | 212 - 353 | 230 | 0.15 | |
| 28745 | LMN185HV | 12x42.8x7.2 | 29 | 1/4 - 1/2 | 424 - 318 | 230 | 0.15 | |
| 28746 | LMAN095HV | 11.2x36x6.5 | 21 | 1/4 - 3/8 | 282 - 177 | 230 | 0.15 | |
| 28747 | LMAN125HV | 11.2x36x6.5 | 21 | 1/4 - 3/8 | 353 - 212 | 230 | 0.15 | |
| 28748 | LMAN185HV | 12x43.6x7.9 | 31 | 1/4 - 1/2 | 445 - 353 | 230 | 0.15 | |
| 28749 | LMDN095HV | 7.5x32.6x22.8 | 45 | 1/4 - 3/8 | 300 - 230 | 230 | 0.25 | |
| 28750 | LMDN125HV | 7.5x32.6x22.8 | 45 | 1/4 - 3/8 | 335 - 265 | 230 | 0.25 | |
| 28751 | LMDN185HV | 7.5x44.3x22.6 | 58 | 1/4 - 1/2 | 530 - 406 | 230 | 0.25 | |
| 28752 | LMCN125HV | 8.6x22.6x22.6 | 31 | 1/4 - 3/8 | 335 - 247 | 230 | 0.25 | |
| 28753 | LMCN185HV | 10x22.6x22.6 | 33 | 1/4 - 1/2 | 459 - 388 | 230 | 0.25 |
