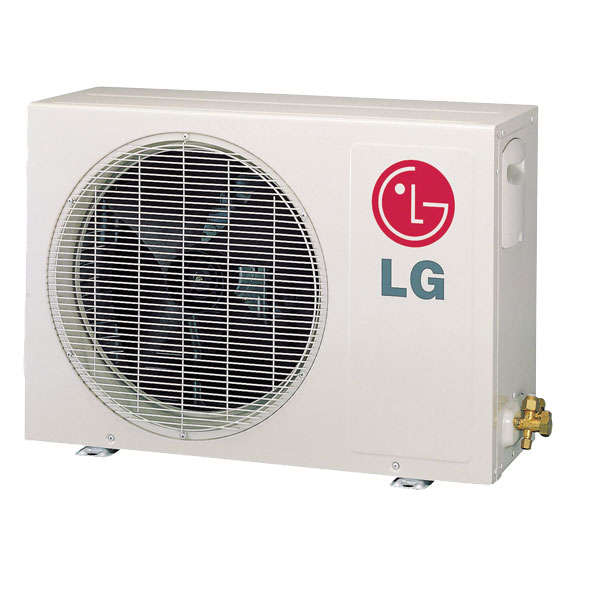

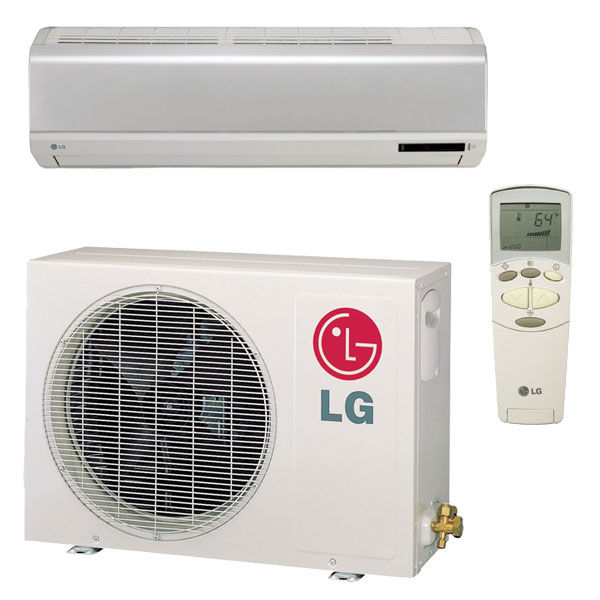

Mini-Split Standard systems utilize the same duct-free technology as Art Cool units in a streamlined, low profile design. Models are available in a variety of sizes from 9,000 through 30,000 BTUs. LG's Mini-split standard air conditioners are easy to install, efficient and cost effective.
LG Mini-Split Heat Pumps - Click to View
| Model ID | Model Name | Indoor Unit Model | Outdoor Unit Model | Cooling Cap. MBH | Heating Cap MBH | SEER | Indoor CFM | Volts | Amps |
|---|---|---|---|---|---|---|---|---|---|
| 28731 | LS092HE | LSN092HE | LSU092HE | 9.8 | 9.8 | 13.0 | 250/210/170 | 115 | 10.5 |
| 28732 | LS122HE | LSN122HE | LSU122HE | 11.5 | 11.5 | 13.0 | 330/280/230 | 115 | 10.5 |
| 28733 | LS182HE | LSN182HE | LSU182HE | 19.5 | 19.5 | 13.0 | 530/450/370 | 230 | 11.5 |
| 28734 | LS242HE | LSN242HE | LSU242HE | 22.5 | 22.5 | 13.0 | 530/450/370 | 230 | 11.5 |
| 28735 | LS305HV | LSN305HV | LSU305HV | 27.0 | 29.0 | 16.0 | 710/640/530 | 230 | 13.6 |
| Model ID | Model Name | Indoor HxWxD | Indoor Weight | Indoor dB | Outdoor HxWxD | Outdoor Weight | Line Set Size | Max Lineset Lnth - Hgt |
|---|---|---|---|---|---|---|---|---|
| 28731 | LS092HE | 10.6x33.1x6 | 16 | 41/36/34 | 21.3x30.3x9.6 | 73 | 1/4 - 1/2 | 50 - 25 |
| 28732 | LS122HE | 11.6x35.2x6.5 | 21 | 41/36/34 | 21.3x30.3x9.6 | 73 | 1/4 - 1/2 | 50 - 25 |
| 28733 | LS182HE | 11.8x42.9x7 | 29 | 46/41/38 | 21.5x34.3x12.6 | 170 | 1/4 - 5/8 | 100 - 50 |
| 28734 | LS242HE | 11.8x42.9x7 | 29 | 46/41/38 | 21.5x34.3x12.6 | 170 | 1/4 - 5/8 | 100 - 50 |
| 28735 | LS305HV | 13.6x47.6x8.25 | 38 | 47/42/39 | 31.25x34.25x12.6 | 148 | 1/4 - 5/8 | 100 - 50 |
