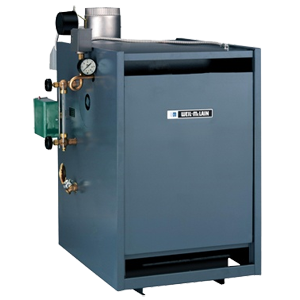

Natural draft cast iron boiler for steam or water heating systems.
MODEL | Input MBtuH | Output MBtuH | AFUE | Dimensions HxWxD | Water Content Gal. | Weight Lbs. | STEAM SQ. FT. |
---|---|---|---|---|---|---|---|
EG-30 Steam | 75.0 | 62.0 | 83.0 | 33.75x27.6x17 | 0.00 | 380 | 196 |
EG-30 Water | 75.0 | 62.0 | 84.3 | 33.75x27.6x17 | 0.00 | 380 | |
EG-35 Steam | 100.0 | 83.0 | 82.9 | 33.75x27.6x17 | 0.00 | 380 | 258 |
EG-35 Water | 100.0 | 83.0 | 83.6 | 33.75x27.6x17 | 0.00 | 380 | |
EG-40 Steam | 125.0 | 104.0 | 82.9 | 33.75x27.6x21.25 | 0.00 | 465 | 325 |
EG-40 Water | 125.0 | 104.0 | 84.0 | 33.75x27.6x21.25 | 0.00 | 465 | |
EG-45 Steam | 150.0 | 125.0 | 82.9 | 33.75x27.6x21.25 | 0.00 | 465 | 392 |
EG-45 Water | 150.0 | 125.0 | 83.5 | 33.75x27.6x21.25 | 0.00 | 465 | |
EG-50 Steam | 175.0 | 145.0 | 82.8 | 33.75x27.6x25.5 | 0.00 | 545 | 454 |
EG-50 Water | 175.0 | 145.0 | 83.8 | 33.75x27.6x25.5 | 0.00 | 545 | |
EG-55 Steam | 200.0 | 167.0 | 82.8 | 33.75x27.6x25.5 | 0.00 | 545 | 521 |
EG-55 Water | 200.0 | 167.0 | 83.8 | 33.75x27.6x25.5 | 0.00 | 545 | |
EG-65 Steam | 250.0 | 209.0 | 83.0 | 33.75x27.6x29.75 | 0.00 | 630 | 654 |
EG-65 Water | 250.0 | 209.0 | 84.0 | 33.75x27.6x29.75 | 0.00 | 630 | |
EG-75 Steam | 299.0 | 247.0 | 82.4 | 33.75x27.6x34 | 0.00 | 695 | 750 |
EG-75 Water | 299.0 | 247.0 | 82.7 | 33.75x27.6x34 | 0.00 | 695 |
