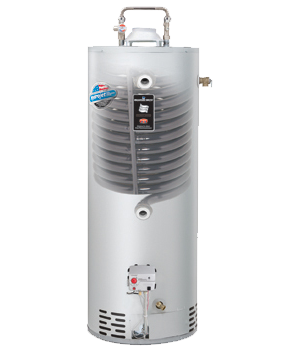

Bradford White COMBI2 Atmospheric Vent Energy Saver System

The Combi2 Series combination water heaters are designed to provide both potable water heating and space heating from a single heat source. The heated potable water in the tank transfers its' heat through the heat exchanger to the fluid within the coil. The double wall heat exchange coil also provides added protection, required by certain municipalities, against the mixing of potable water and space heating fluid.

Bradford White ICON System Features:
- Enhanced Performance
- Advanced Temperature Control System
- Intelligent Diagnostics
- Pilot On Indication
- Green LED
- Separate Immersed Thermowell
- Standard Energy Saver Features
  - Heat exchanger - double wall 1.5 in. O.D. glass coated (Vitraglas) steel coil
  - Low heat exchanger head loss - Up to 10 GPM flow, with less than 5 ft. of head loss
  - Factory installed Hydrojet 2 Total Performance System
  - Vitraglas lining
  - 3/4 in. NPT factory installed dielectric waterway fittings
  - Two protective anode rods
  - Integrated Mixing Device
  - Vitraglas Lining - exclusive ceramic porcelain
  - Self Diagnostic Honeywell Gas Control
  - 2" Non-CFC Foam Insulation
- T&P Relief Valve
- Brass Drain Valve

Model ID	Model Name	Gallon Size	Input MBH Nat - LP	Recovery 90d NG - LP	Heat Exchanger MBH 4.4 GPM Flow	H x Dia.	Weight
29757	C-DW2-504T10FBN	45	65.0 - 61.0	70 - 66	38.0	56.4 x 22	238

10 Year Warranty On Tank and Heat Exchanger

6 Year Component Part Warranty

Spec Sheet
